Aure RD04 / Aure RD05
Aure
Aure RD04 / Aure RD05Façade Lighting / In-Ground / Burial Lights
Adjustable
Adjustable round in-ground light in two sizes, 230 mm and 260 mm across, for DC 24V. Both are rated IK 10 and IP 67 and offer beams from 6° to 60°.
Features
- Two sizes: Ø230 mm and Ø260 mm trims
- Listed as adjustable
- DC 24V
- Beam angles from 6° to 60°
- 75 lm/W at 3000K; 35 lm/W at RGBW
- ON/OFF, DALI, 0-10V, PWM, DTW and DMX/RDM control
- White, single-colour, RGB and RGBW options
- IK 10 and IP 67
Specifications
- Input Voltage
- DC 24V
- LED Chip
- CREE / OSRAM
- Light Efficiency
- 75 lm/W at 3000K; 35 lm/W at RGBW
- IK Rating
- IK 10
- IP Rating
- IP 67
- Beam Angle
- 6° / 8° / 15° / 30° / 36° / 45° / 60°
- Colour Options
- 2700K, 3000K, 4000K, 5000K, 5700K, 6000K, 6500K, Red, Green, Blue, RGB, RGBW
- Controls
- ON/OFF, DALI, 0-10V, PWM, DTW, DMX/RDM
Models
2 modelsModel Aure RD04
- Wattage
- 24 / 24×2 W (as printed: "24 / 24*2W")

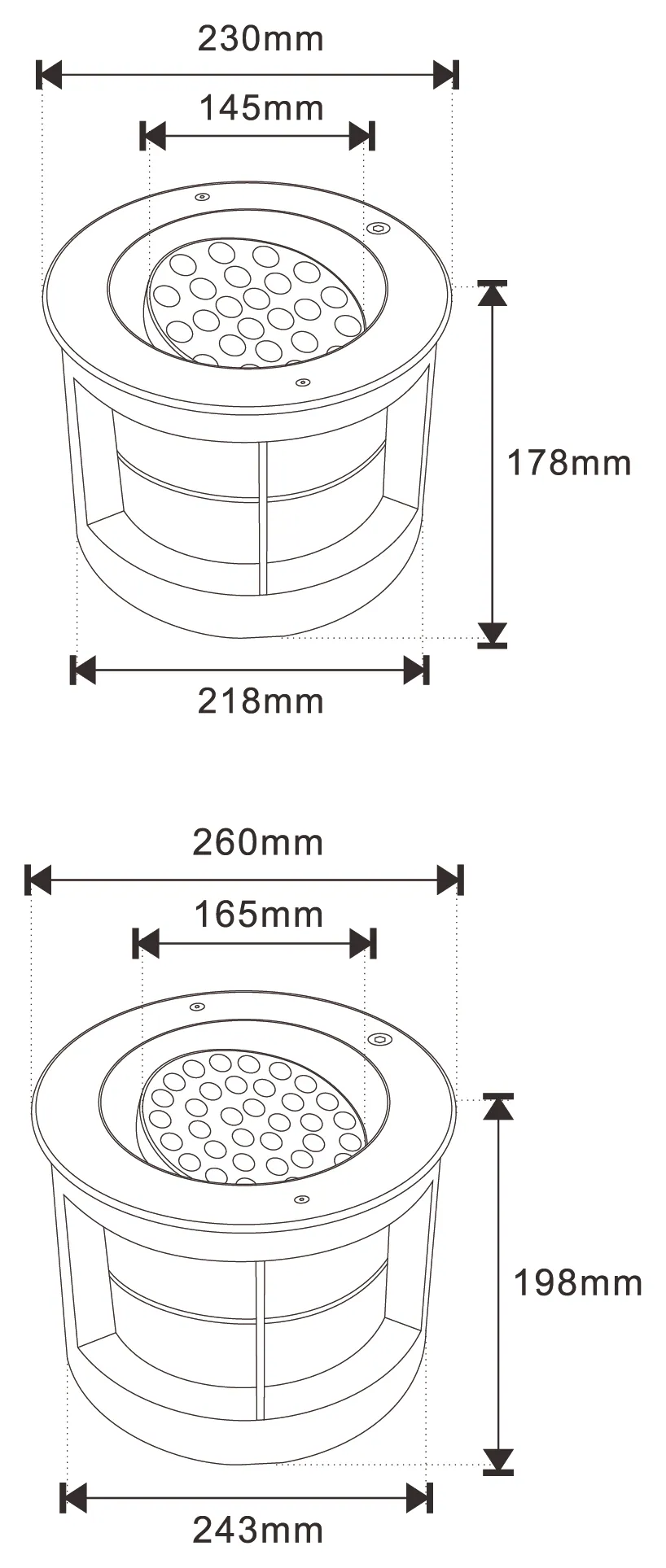

- Dimensions
- Ø230 mm trim; 145 mm inner ring; Ø218 mm body; 178 mm deep
Model Aure RD05
- Wattage
- 36 / 36×2 W (as printed: "36 / 36*2W")
- Dimensions
- Ø260 mm trim; 165 mm inner ring; Ø243 mm body; 198 mm deep
Values common to every model are listed under Specifications.
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
