Model
Aurora 30W
Aurora
Aurora 30WFaçade Lighting / Linear Lights

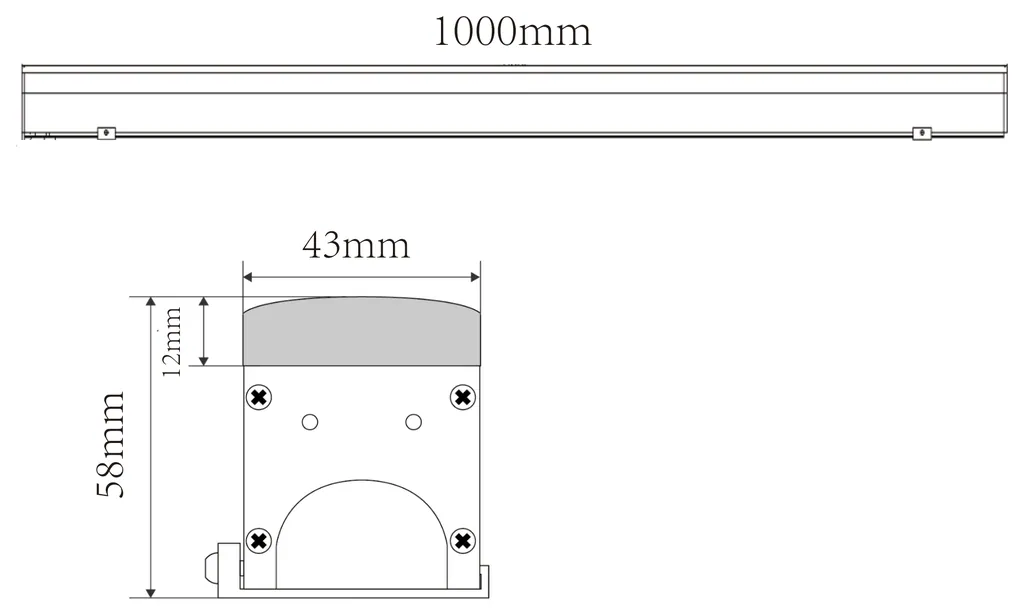

Linear light on a 43 mm wide, 58 mm high profile, drawn at 1000 mm long. It draws 30W at DC 24V and is rated IK 08 and IP 66.
- Wattage
- 30W
- Protection
- IP 66
Features
- 43 mm wide × 58 mm high section with a 12 mm diffuser
- 1000 mm length
- 30W at DC 24V
- 60 lm/W at 3000K; 20 lm/W at RGBW
- ON/OFF, DALI, 0-10V, PWM and DMX/RDM control
- White, single-colour, RGB, RGBW and tunable-white options
- IK 08 and IP 66
Specifications
- Model
- Aurora 30W
- Wattage
- 30W
- Input Voltage
- DC 24V
- LED Chip
- CREE / OSRAM
- Light Efficiency
- 60 lm/W at 3000K; 20 lm/W at RGBW
- IK Rating
- IK 08
- IP Rating
- IP 66
- Length
- 1000 mm
- Dimensions
- 43 mm wide × 58 mm high (12 mm diffuser)
- Colour Options
- 2700K, 3000K, 4000K, 5000K, 5700K, 6500K, Red, Green, Blue, RGB, RGBW, Tunable white
- Controls
- ON/OFF, DALI, 0-10V, PWM, DMX/RDM
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
