Model

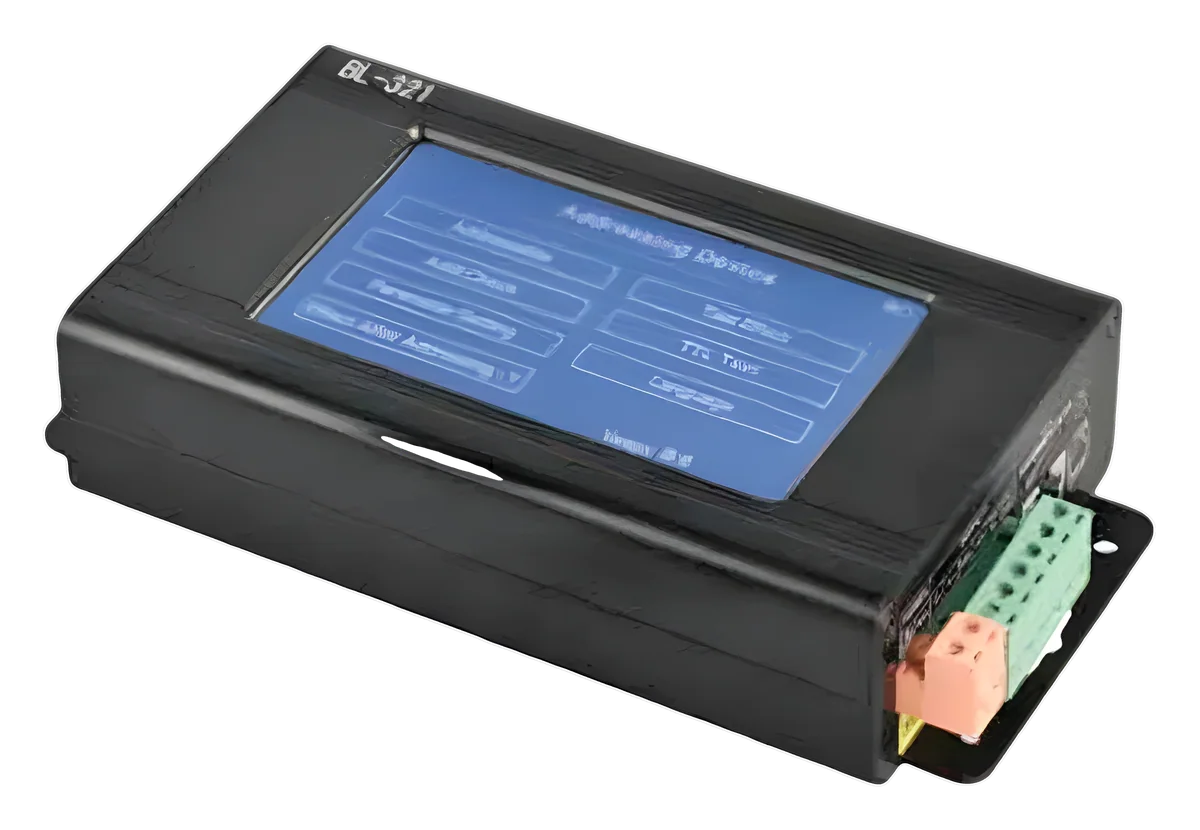

BL-321
BL-321
Façade Lighting / Controllers & Control Systems
Handheld addressing device with an LCD screen for setting the address and parameters of DMX512 driver chips. It runs from Micro-USB 5V (including a power bank) or DC 12–24V.
Features
- Sets the address and parameters of DMX512 chips
- LCD display
- Micro-USB 5V or DC 12–24V power; 3 hours charging for 6 hours use
- Built-in test animations
- 0–255 grey-scale levels
- Single data output: RS-485, 5V-TTL or 12V-TTL; 1024 pixels per port
Specifications
- Input Voltage
- Micro-USB DC 5V 2A (power bank can be used) / DC 12–24V 1A
- Output Port
- Single data output (RS-485 / 5V-TTL / 12V-TTL)
- Pixels Driven
- 1024 pixels per port
- Output Power
- < 10W
- Housing
- Aluminium alloy
- Working Temperature
- -15°C to 50°C
- Relative Humidity
- ≤ 50% RH
- IP Rating
- IP 20
- Net Weight
- 500 g
- Accessories
- Binding posts × 3 (orange × 1, green × 2)
- Dimensions

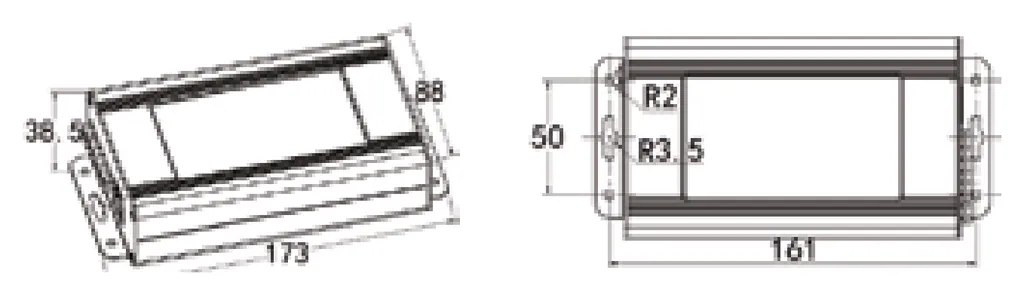

- 173 × 88 × 38.5 mm (size drawing)
- Input Voltage (BL-321)
- DC 5V (Micro-USB) / DC 12–24V
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
