Models
2-pin jumper cable – Power T cable
Connection Cables
2-pin jumper cable – Power T cableFaçade Lighting / Controllers & Control Systems
Rubber-sheathed copper jumper cables, lead wires and a power T cable with waterproof connectors, for linking fixtures to each other, to the power supply and to DMX controllers.
Features
- Jumper cables in 2, 3, 4 and 5 pins, male to female
- Lead wires in 2, 3, 4 and 5 pins
- Power T cable: female–male–female
- H05RR-F and H05RN-F 300/500V cable
- Rubber and copper construction
Specifications
- Material
- Rubber + copper
- Cable Rating
- 300V/500V
Models

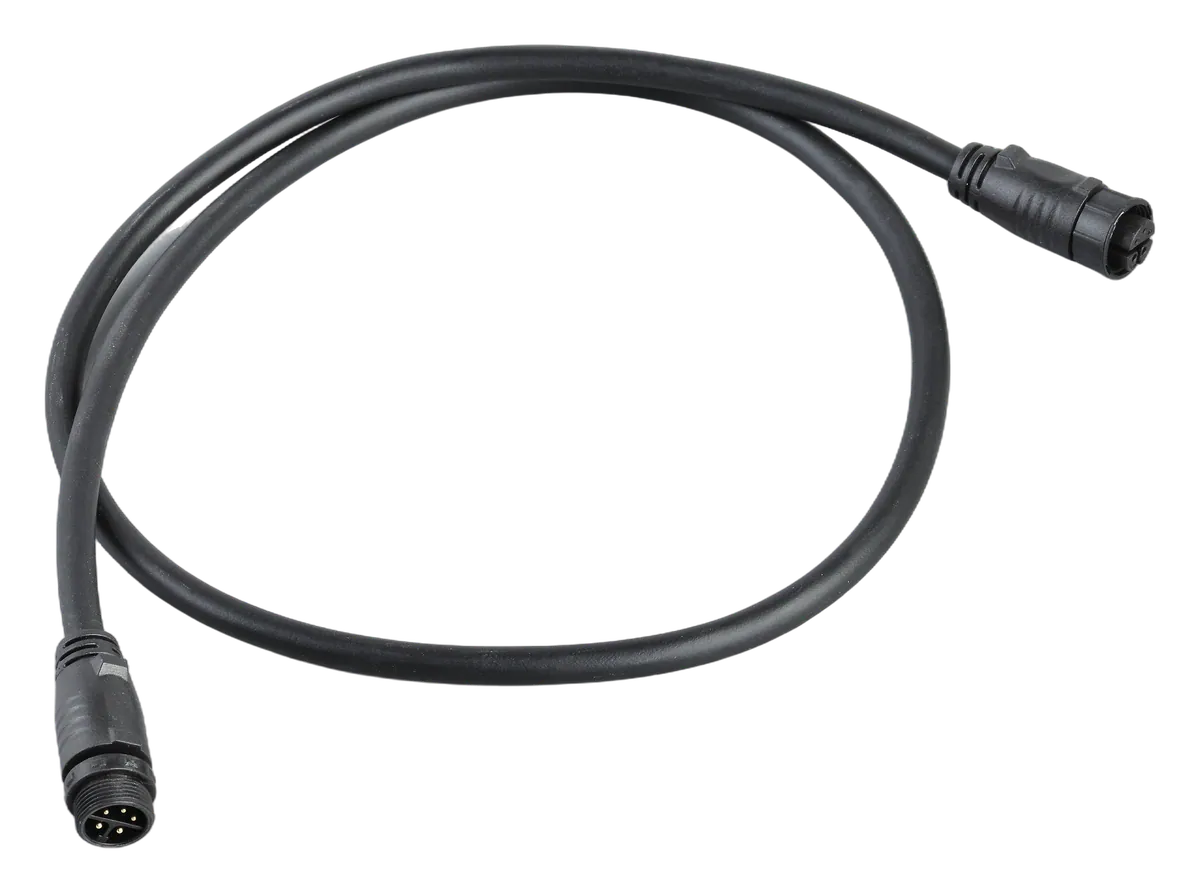

9 modelsModel 2-pin jumper cable
- Pins
- Male connector one end, female the other
- Usage
- Connecting DC 24V lamps together
Model 3-pin jumper cable
- Pins
- Male connector one end, female the other
- Usage
- Connecting AC lamps together
Model 4-pin jumper cable
- Pins
- Male connector one end, female the other
- Usage
- Connecting AC lamps together
Model 5-pin jumper cable
- Pins
- Male connector one end, female the other
- Usage
- Connecting AC lamps together

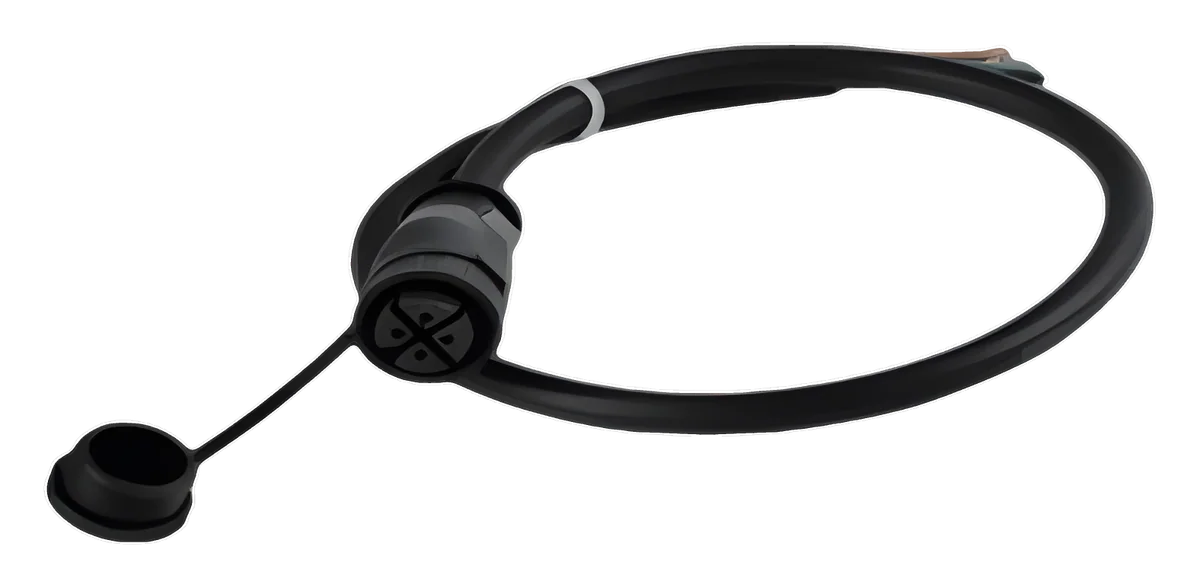

Model 2-pin lead wire
- Pins
- Brown DC24V/V+, blue GND/V-
- Usage
- Connecting a DC 24V lamp to the AC power supply
Model 3-pin lead wire
- Pins
- Yellow-green FG, brown L, blue N
- Usage
- Connecting a lamp to AC power
Model 4-pin lead wire
- Pins
- Black GND, yellow PO, brown A+, blue B-
- Usage
- Connecting an RGB/RGBW lamp to a DMX controller
Model 5-pin lead wire
- Pins
- Brown DC24V, black GND, yellow PO, green A+, blue B
- Usage
- Connecting an RGB/RGBW lamp to a DMX controller and the power supply

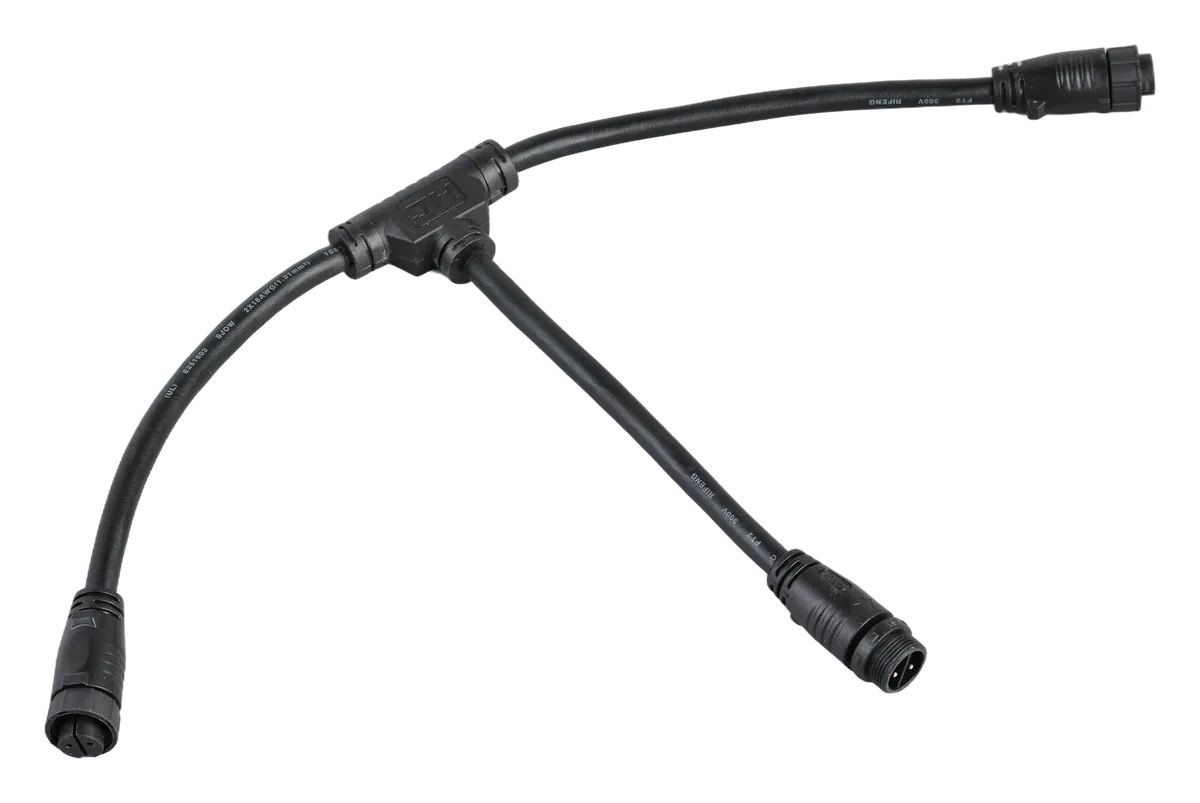

Model Power T cable
- Pins
- Female connector at both ends, male in the middle
- Usage
- Connecting the power supply to each fixture
Values common to every model are listed under Specifications.
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
