Model
WN-SM-01
DMX Signal Amplifier
WN-SM-01Façade Lighting / Controllers & Control Systems

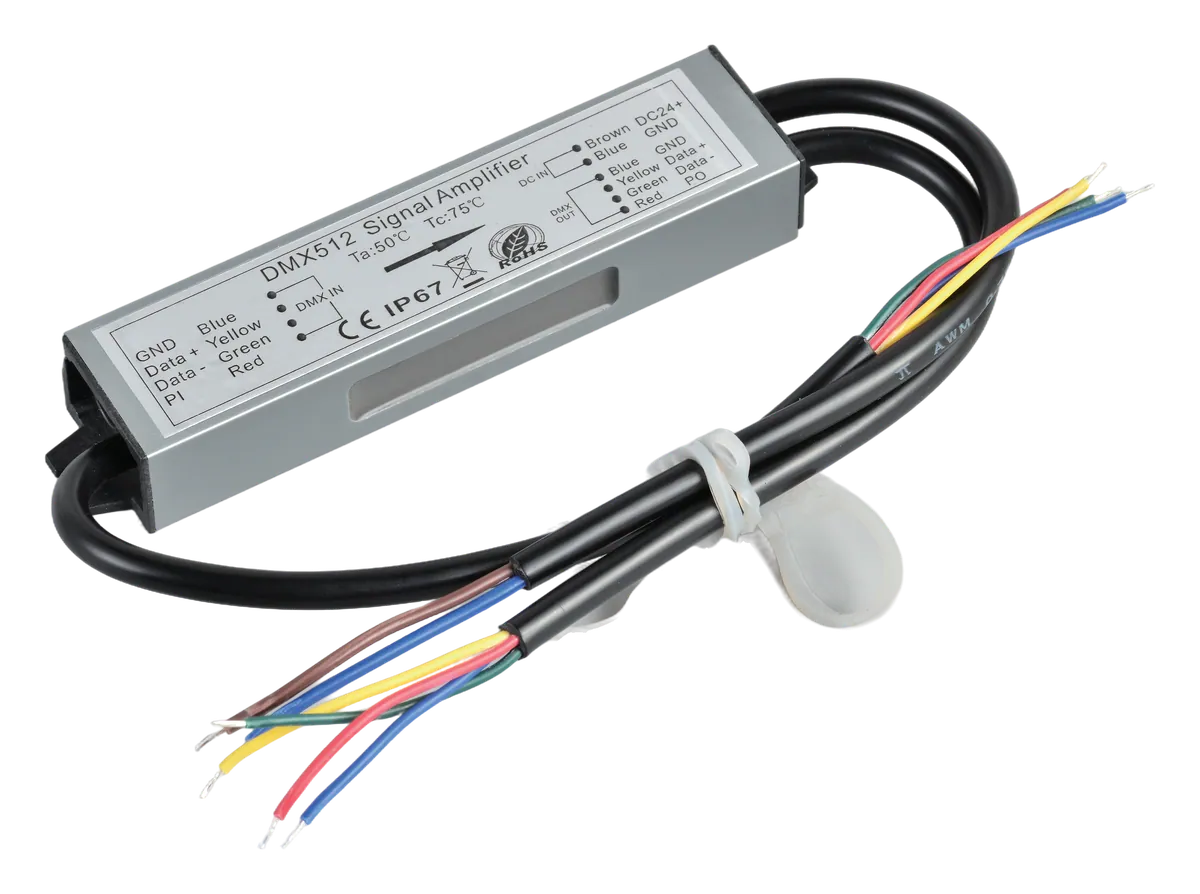

Inline amplifier in an aluminium case that boosts the DMX signal on long fixture runs. The label in the photo shows a DC 24V input and IP 67.
Features
- Amplifies the DMX signal
- Aluminium case
- Flying leads for DC input, DMX in and DMX out
Specifications
- Model
- WN-SM-01
- Housing
- Aluminium
- Input Voltage
- DC 24V (product label)
- IP Rating
- IP 67 (product label)
- Wiring
- DC in: brown DC24+, blue GND. DMX in: blue GND, yellow Data+, green Data-, red PI. DMX out: blue GND, yellow Data+, green Data-, red PO (product label)
- Temperature
- Ta 50°C, Tc 75°C (product label)
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
