Model
EN-508X

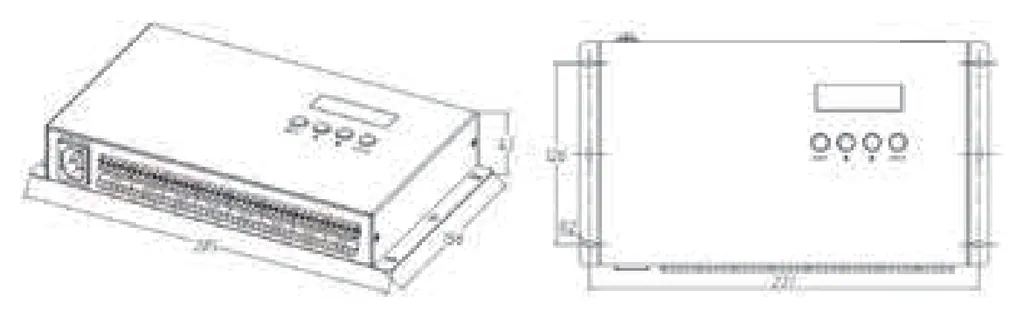

EN-508X Slave Controller
EN-508XFaçade Lighting / Controllers & Control Systems
Eight-port slave controller that takes the SW Ethernet protocol from a PC or an SN-510 and drives pixel and DMX512 fixtures. It supports up to 400,000 pixels, or a cascade of 154 controllers.
Features
- Connects directly to a PC or to an SN-510
- Eight data-independent TTL and RS-485 outputs
- Up to 400,000 pixels, or a cascade of 154 controllers
- ID address set manually
- Works with single-chip, single-wire and DMX512 driver ICs
- LED Player effects software; encryption with customised controllers
- Indoor use only
Specifications
- Model
- EN-508X
- Input Voltage
- AC 100–240V
- Input Signal
- SW Ethernet protocol
- Output Port
- TTL and RS-485 × 8 channels
- Pixels Driven
- Single chip 960 px × 8 ch; single-wire 1024 px × 8 ch; standard DMX512 168 px × 8 ch; extensible DMX 336 px × 8 ch; breakpoint resume 960 px × 8 ch
- Output Power
- 5W
- Connection
- In parallel, addresses set manually
- Transmission Distance
- 100 m between controllers over UTP; up to 5 km with optical fibre
- Housing
- Iron
- Working Temperature
- -15°C to 60°C
- Relative Humidity
- ≤ 50% RH
- IP Rating
- IP 0 (not dust-proof, not waterproof)
- Net Weight
- 1500 g
- Supported ICs
- Single chip D**S, D**J series; single-wire TM180*-400K/800K, UCS19**, UCS29**, TLS3001, SM167**; DMX512 SW-D, SW-U, UCS512A/B/C0/C4/D/E, DMX512AP/SM512, SM16500/12, SM17500P/12P/22P; breakpoint resume UCS5603, WS2818, GS8206, P9883, TM1914, XT1506S
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
* As published by ACON; ask us for the test conditions.
