Glaze RD03 – Glaze RD09
Glaze

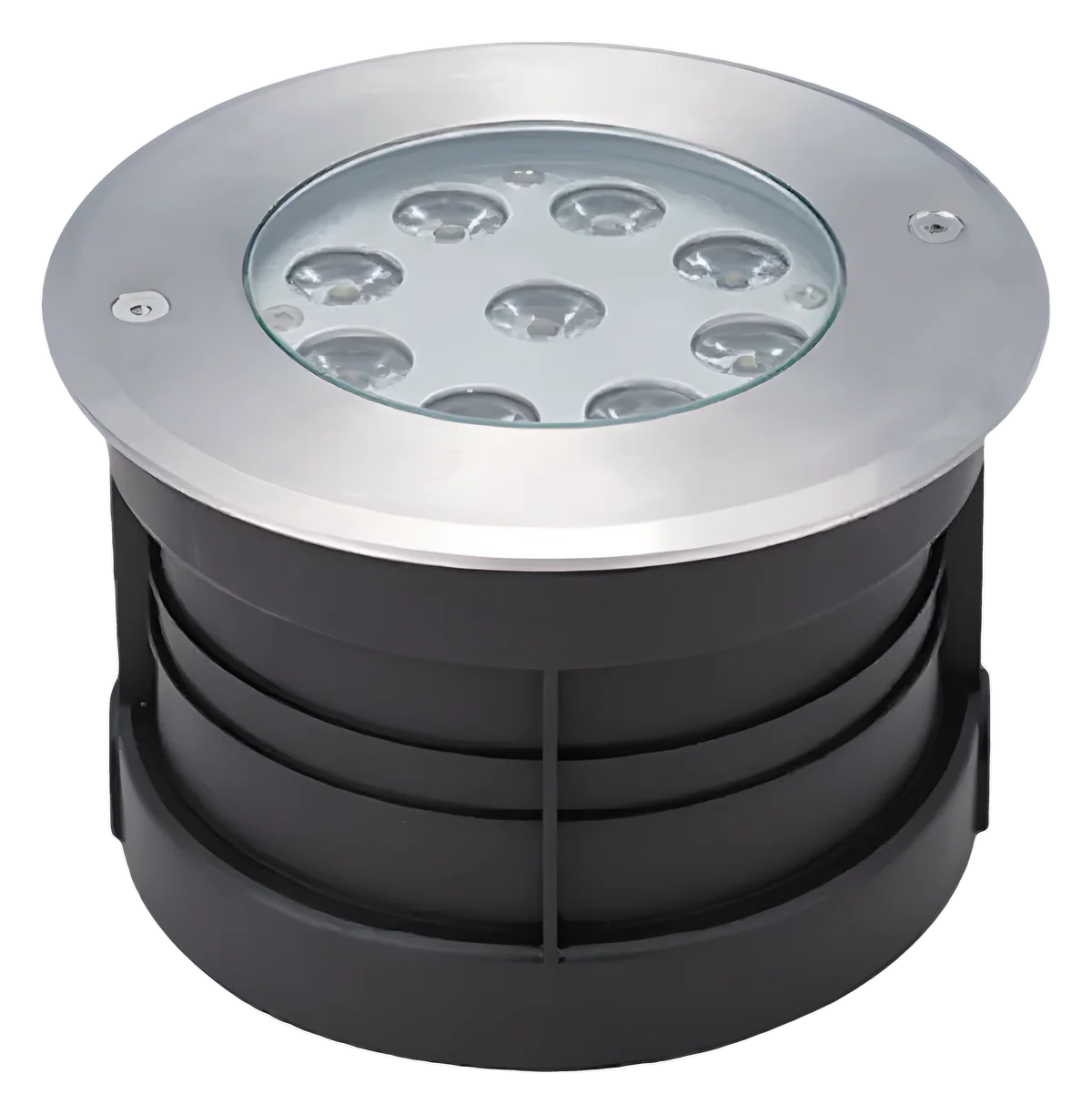

Glaze RD03 – Glaze RD09Façade Lighting / In-Ground / Burial Lights

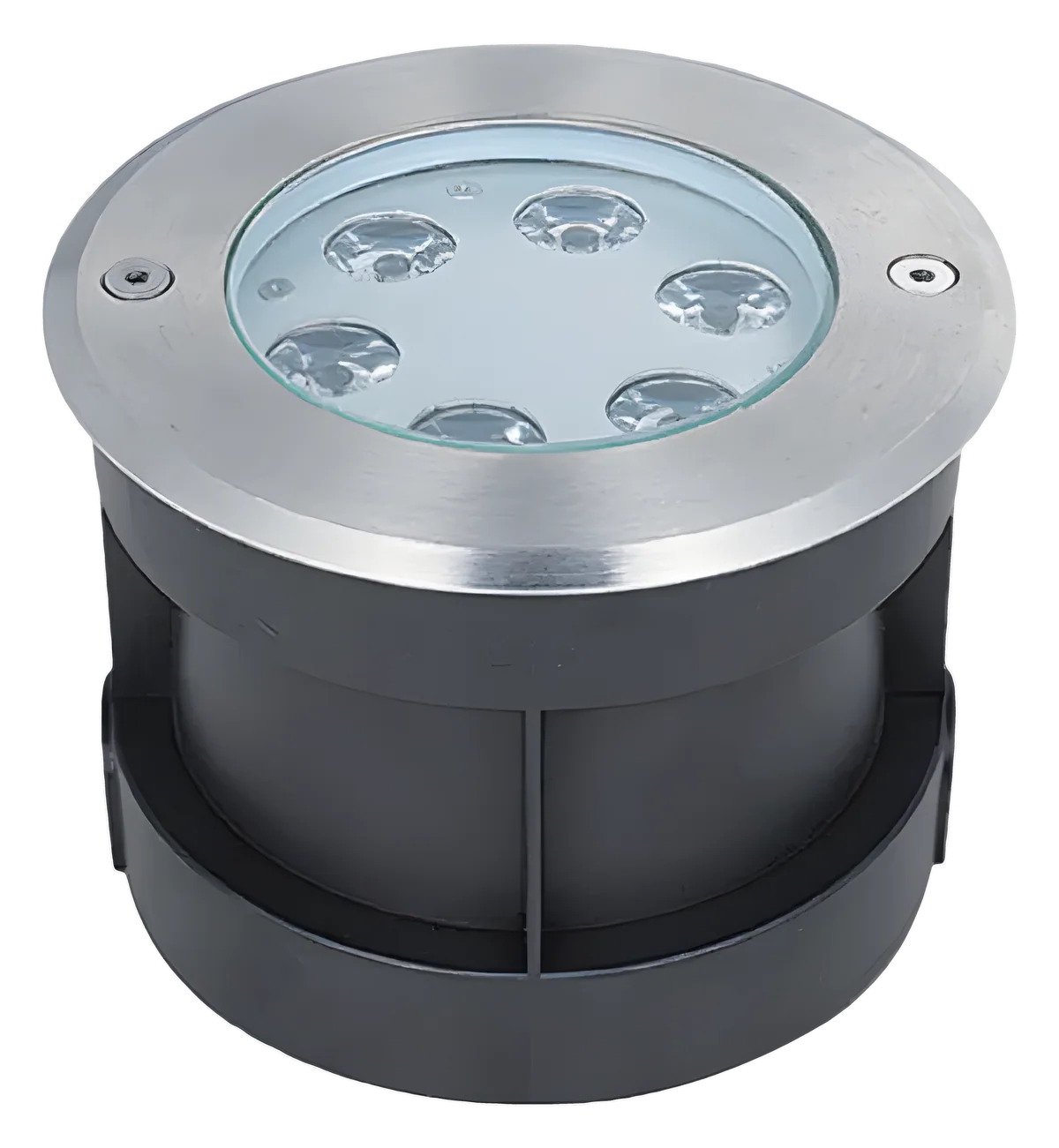

Round in-ground light in three sizes, 3W, 6W and 9W, from 100 mm to 160 mm across. All three run on DC 24V or AC 220V and are rated IK 10 and IP 67.
- Wattage
- 3W · 6W · 9W
- Protection
- IP 67
Features
- Three sizes: 3W, 6W and 9W
- Trim diameters 100, 130 and 160 mm
- DC 24V or AC 220V input
- 75 lm/W at 3000K; 35 lm/W at RGBW
- IK 10 and IP 67
Specifications
- Input Voltage
- DC 24V / AC 220V
- LED Chip
- CREE / OSRAM
- Light Efficiency
- 75 lm/W at 3000K; 35 lm/W at RGBW
- IK Rating
- IK 10
- IP Rating
- IP 67
Models
3 modelsGlaze: models and the values that differ between them
- Wattage

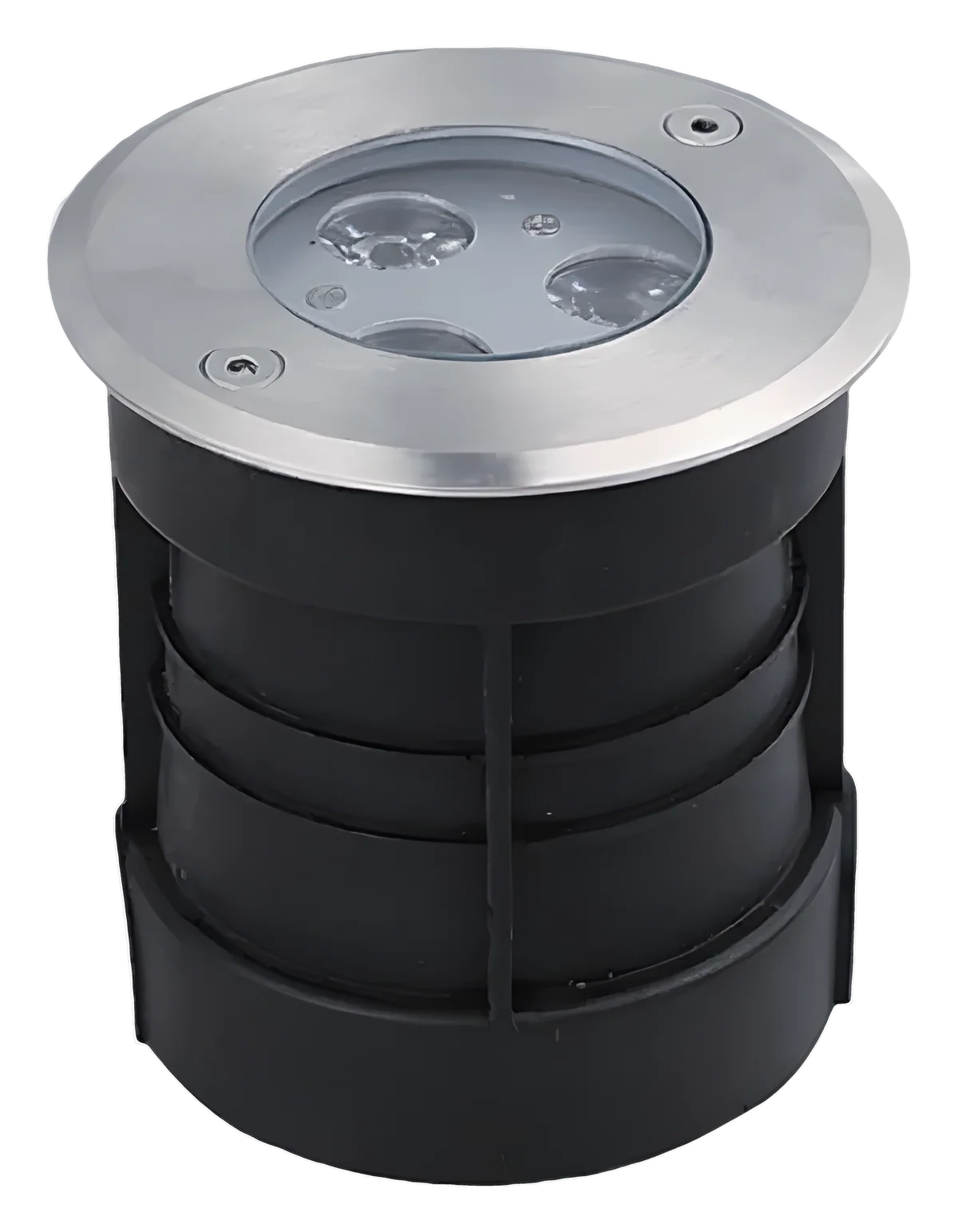

- Model Glaze RD03: 3WModel Glaze RD06: 6WModel Glaze RD09: 9W

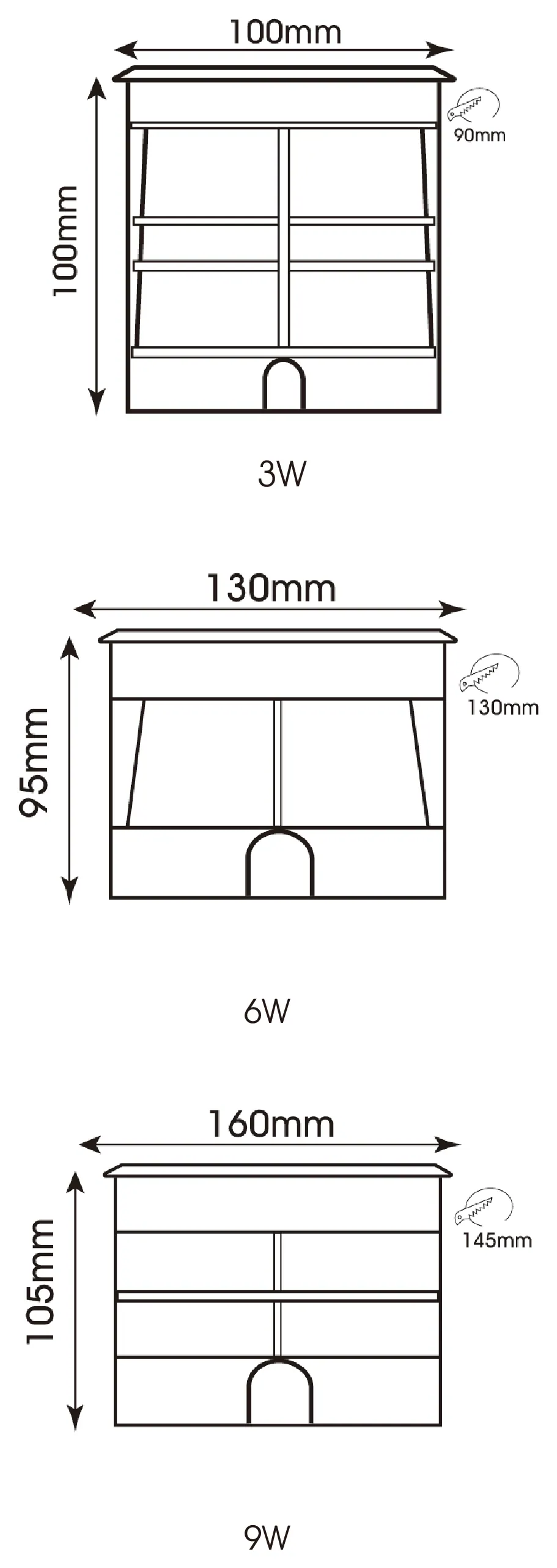

- Dimensions
- Model Glaze RD03: Ø100 mm; 100 mm deepModel Glaze RD06: Ø130 mm; 95 mm deepModel Glaze RD09: Ø160 mm; 105 mm deep
- Cut-out
- Model Glaze RD03: 90 mm (hole-saw symbol)Model Glaze RD06: 130 mm (hole-saw symbol)Model Glaze RD09: 145 mm (hole-saw symbol)
| Model | Glaze RD03 | Glaze RD06 | Glaze RD09 |
|---|---|---|---|
| Wattage | 3W | 6W | 9W |
| Dimensions | Ø100 mm; 100 mm deep | Ø130 mm; 95 mm deep | Ø160 mm; 105 mm deep |
| Cut-out | 90 mm (hole-saw symbol) | 130 mm (hole-saw symbol) | 145 mm (hole-saw symbol) |
Values common to every model are listed under Specifications.
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
