Model
Skyeye 24W
Skyeye
Skyeye 24WFaçade Lighting / In-Ground / Burial Lights
Narrow linear in-ground light, 1003 mm long, 50 mm wide and 92 mm deep. It draws 24W at DC 24V, offers beams from 6° to 60° and is rated IK 10 and IP 67.
- Wattage
- 24W
- Protection
- IP 67
Features

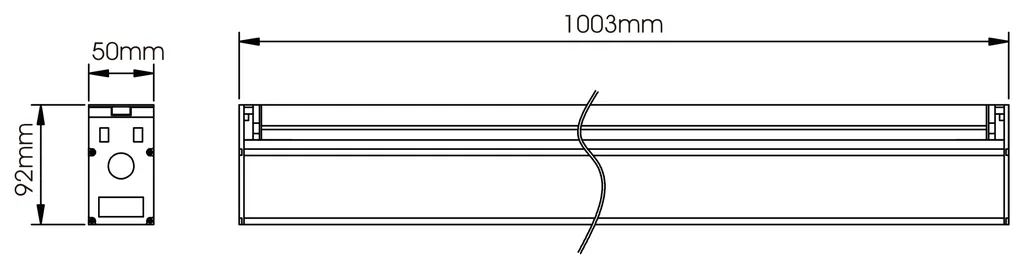

- 1003 mm long, 50 mm wide, 92 mm deep
- 24W at DC 24V
- Beam angles from 6° to 60°
- 75 lm/W at 3000K; 35 lm/W at RGBW
- ON/OFF, DALI, 0-10V, PWM, DTW and DMX/RDM control
- White, single-colour, RGB and RGBW options
- IK 10 and IP 67
Specifications
- Model
- Skyeye 24W
- Wattage
- 24W
- Input Voltage
- DC 24V
- Beam Angle
- 6° / 8° / 15° / 30° / 36° / 45° / 60°
- Light Efficiency
- 75 lm/W at 3000K; 35 lm/W at RGBW
- Colour Options
- 2700K, 3000K, 4000K, 5700K, Red, Green, Blue, RGB, RGBW
- Controls
- ON/OFF, DALI, 0-10V, PWM, DTW, DMX/RDM
- IK Rating
- IK 10
- IP Rating
- IP 67
- Dimensions
- 1003 mm long × 50 mm wide × 92 mm deep
- Length
- 1003 mm
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
