Model
SW-301T
SW-301T
Façade Lighting / Controllers & Control Systems
SD-card pixel controller for LED digital-tube and pixel screens, with automatic or manual effect selection and adjustable speed. It measures 193 × 122 × 45 mm and runs on AC 100–240V.
Features
- Drives LED digital-tube and pixel screens with common chips
- Automatic or manual effect selection; adjustable speed; AC sync
- D**S-series fixtures need addressing only once; DMX channels set as needed
- Address of the first fixture can be set
- Falls back to built-in effects on error
- Effects software included; effects saved to SD card
- TTL × 8 and RS-485 × 2 outputs
Specifications
- Input Voltage
- AC 100–240V
- Output Port
- TTL × 8 channels and RS-485 × 2 channels (same content)
- Pixels Driven
- Single chip 960 points per channel; single-wire 1024 points per channel
- Output Power
- < 3W
- Working Temperature
- -15°C to 60°C
- Relative Humidity
- ≤ 50% RH
- IP Rating
- IP 0 (not dust-proof, not waterproof)
- SD Card
- Under 256 MB

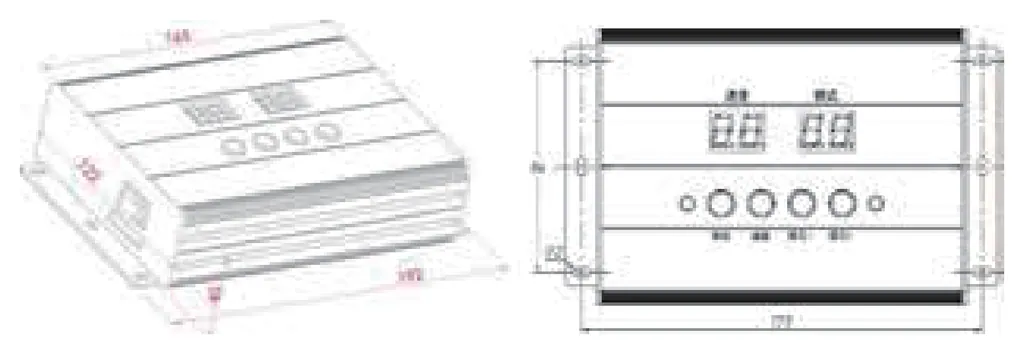

- Dimensions
- 193 × 122 × 45 mm
- Weight
- 710 g (net 600 g)
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
* As published by ACON; ask us for the test conditions.
