Model
SY-418
SY-418
Façade Lighting / Controllers & Control Systems
Eight-channel pixel controller for large projects and long-distance runs, with cascade connection of several controllers. It measures 285 × 156 × 45 mm and runs on AC 100–240V.
Features
- Eight data-independent TTL and RS-485 outputs
- Several controllers can be cascaded
- Drives common chips in LED digital-tube and pixel screens
- Optional audio and sound control, cascade sync, time control, GPS and BTS satellite sync
- Animation software included
- AC 100–240V input, under 3W
Specifications
- Input Voltage
- AC 100–240V
- Output Signal
- TTL and RS-485 × 8 channels
- Pixels Driven
- Single chip 960 px × 8 ch; single-wire 1024 px × 8 ch; standard DMX512 168 px × 8 ch; extensible DMX 336 px × 8 ch; breakpoint resume 960 px × 8 ch
- Output Power
- < 3W
- Housing
- Iron
- Working Temperature
- -15°C to 60°C
- Relative Humidity
- ≤ 50% RH
- IP Rating
- IP 20
- Net Weight
- 2050 g

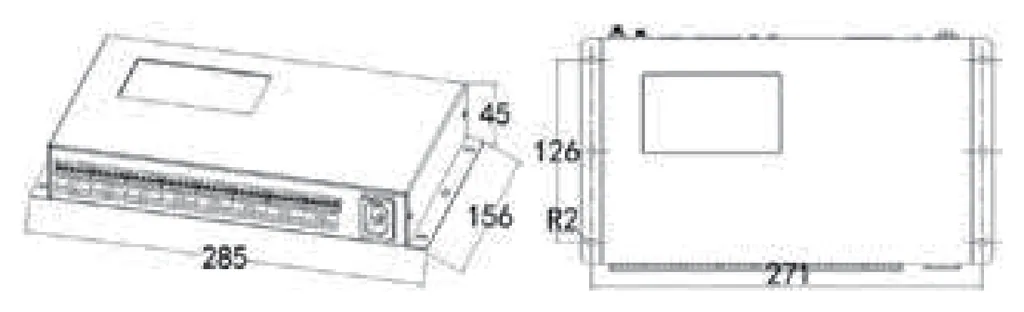

- Dimensions
- 285 × 156 × 45 mm
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
