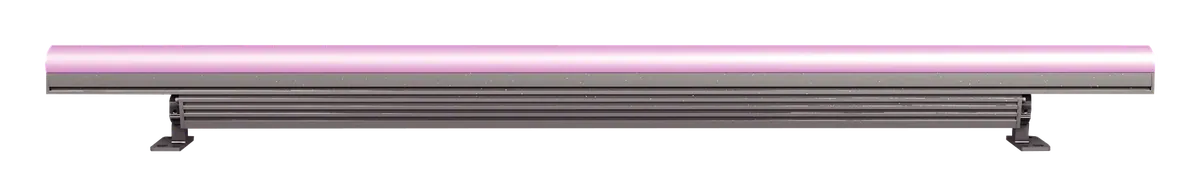

TS Cove Dome 36W – TS Cove Dome 8WFaçade Lighting / Linear Lights

Domed-diffuser version of the TS Cove linear light, 37.8 mm wide and 82.3 mm high, in four lengths from 300 mm (8W) to 1200 mm (36W).

Wattage
36W – 8W
Protection
IP 66

  • Four lengths: 300, 500, 1000 and 1200 mm (8W to 36W)
  • 37.8 mm wide × 82.3 mm high section
  • DC 24V, 90 lm/W at 3000K

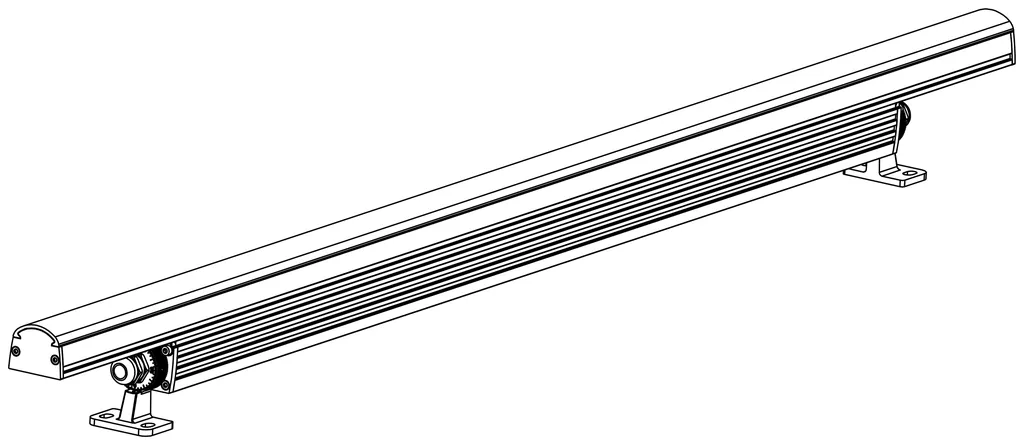

  • Rotatable die-cast bracket with a graduated scale, 180° rotation
  • Stainless-steel fixing plate
  • Seven-core quick-connect waterproof plug
  • IK 08 and IP 66
  • Domed diffuser
  • Body colour can be customised

Input Voltage
DC 24V
Light Efficiency
90 lm/W at 3000K; 35 lm/W at RGBW
IK Rating
IK 08
IP Rating
IP 66

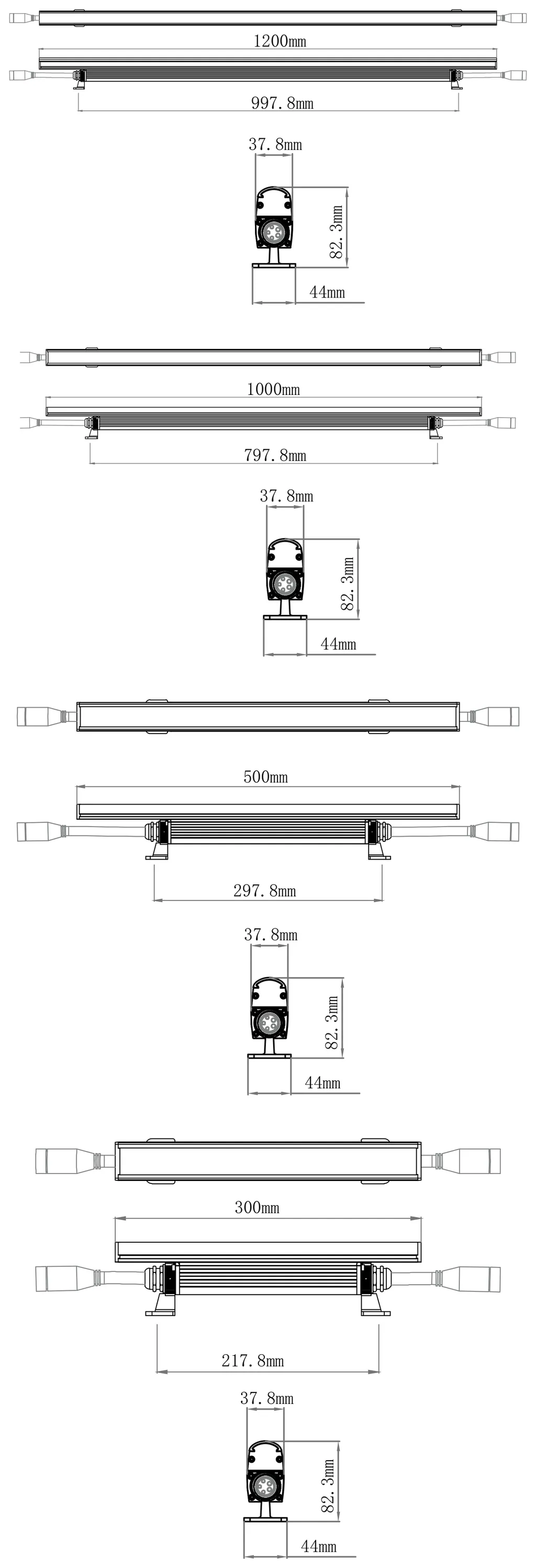

Dimensions
37.8 mm wide × 82.3 mm high; 44 mm wide mounting foot
Lengths
300 mm, 500 mm, 1000 mm, 1200 mm
Colour Options
2700K, 3000K, 4000K, 5000K, 5700K, 6500K, Red, Green, Blue, RGB, RGBW, Tunable white
Controls
ON/OFF, DALI, 0-10V, PWM, DTW, DMX/RDM, Remote, Bluetooth

  • Model TS Cove Dome 36W

    Wattage
    36W
    Length
    1200 mm
    Bracket Centres
    997.8 mm
  • Model TS Cove Dome 30W

    Wattage
    30W
    Length
    1000 mm
    Bracket Centres
    797.8 mm
  • Model TS Cove Dome 15W

    Wattage
    15W
    Length
    500 mm
    Bracket Centres
    297.8 mm
  • Model TS Cove Dome 8W

    Wattage
    8W
    Length
    300 mm
    Bracket Centres
    217.8 mm

Specifications may change. Please confirm with ACON before specifying.
