TS Cove Lens 36W – TS Cove Lens 8W

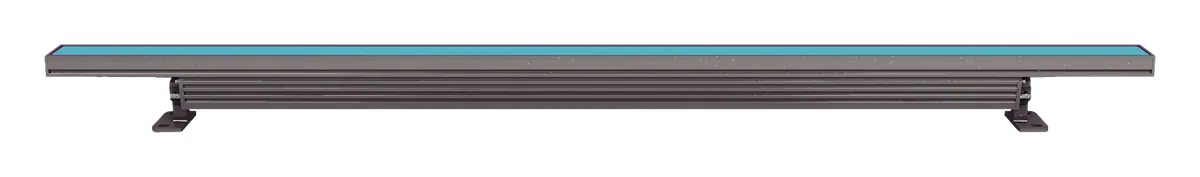

TS Cove Lens
TS Cove Lens 36W – TS Cove Lens 8WFaçade Lighting / Linear Lights
Lens-optic version of the TS Cove linear light, 37.8 mm wide and 71.9 mm high, in four lengths from 300 mm (8W) to 1200 mm (36W). It runs on DC 24V with 30°, 60° or 10° × 60° beams and is rated IK 08 and IP 66.
- Wattage
- 36W – 8W
- Beam
- 30° / 60° / 10° × 60°
Features
- Four lengths: 300, 500, 1000 and 1200 mm (8W to 36W)
- 37.8 mm wide × 71.9 mm high section
- DC 24V, 90 lm/W at 3000K

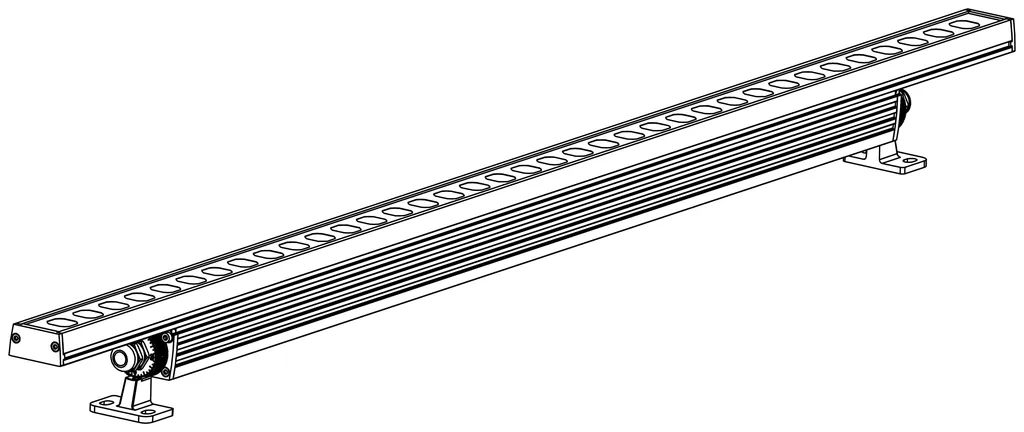

- Rotatable die-cast bracket with a graduated scale, 180° rotation
- Stainless-steel fixing plate
- Seven-core quick-connect waterproof plug
- IK 08 and IP 66
- Individual lens optics; 30°, 60° or 10° × 60° beam
- Body colour can be customised
Specifications
- Input Voltage
- DC 24V
- Light Efficiency
- 90 lm/W at 3000K; 35 lm/W at RGBW
- IK Rating
- IK 08
- IP Rating
- IP 66 (not printed for the 8W model)

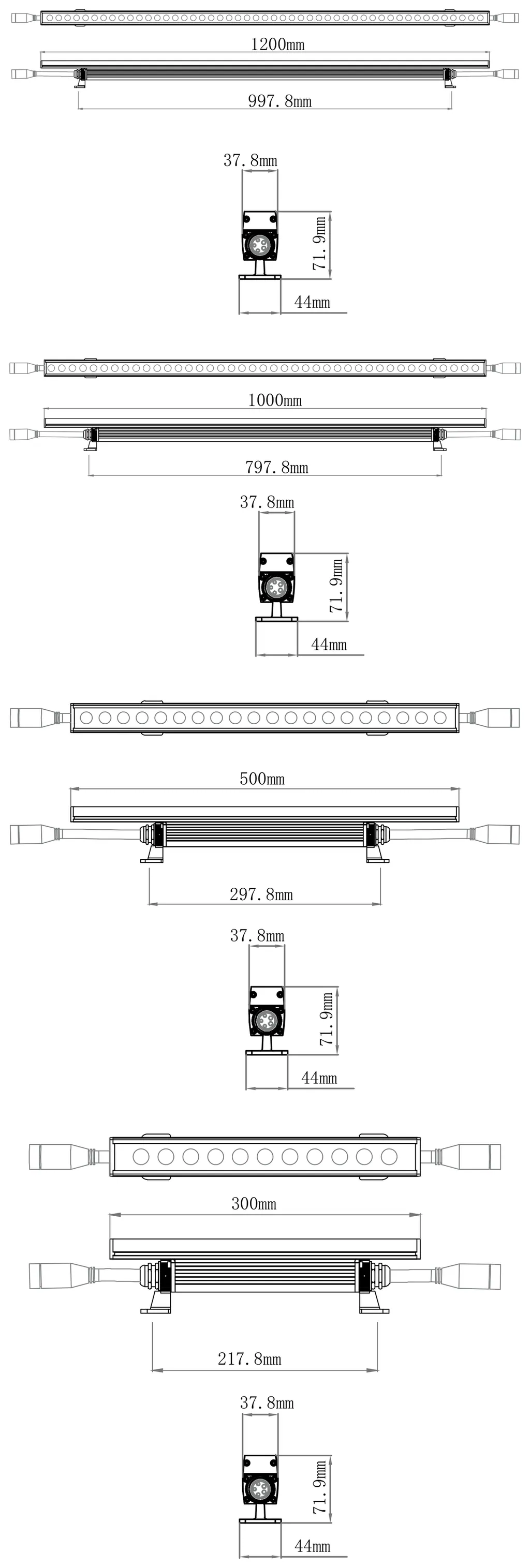

- Dimensions
- 37.8 mm wide × 71.9 mm high; 44 mm wide mounting foot
- Lengths
- 300 mm, 500 mm, 1000 mm, 1200 mm
- Beam Angle
- 30° / 60° / 10° × 60°
- Colour Options
- 2700K, 3000K, 4000K, 5000K, 5700K, 6500K, Red, Green, Blue, RGB, RGBW, Tunable white
- Controls
- ON/OFF, DALI, 0-10V, PWM, DTW, DMX/RDM, Remote, Bluetooth
Models
4 modelsModel TS Cove Lens 36W
- Wattage
- 36W
- Length
- 1200 mm
- Bracket Centres
- 997.8 mm
- IP Rating
- IP 66
Model TS Cove Lens 30W
- Wattage
- 30W
- Length
- 1000 mm
- Bracket Centres
- 797.8 mm
- IP Rating
- IP 66
Model TS Cove Lens 15W
- Wattage
- 15W
- Length
- 500 mm
- Bracket Centres
- 297.8 mm
- IP Rating
- IP 66
Model TS Cove Lens 8W
- Wattage
- 8W
- Length
- 300 mm
- Bracket Centres
- 217.8 mm
- IP Rating
- —
Values common to every model are listed under Specifications.
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
