Model
Twilight 12W
Twilight
Twilight 12WFaçade Lighting / Linear Lights
Linear light on a 28.5 mm wide, 42.05 mm high profile, 1000 mm long, fixed with a separate mounting clip. It draws 12W at DC 24V with a 120° beam.
- Wattage
- 12W
- Protection
- IP 67 (badge)
- Beam
- 120°
Features

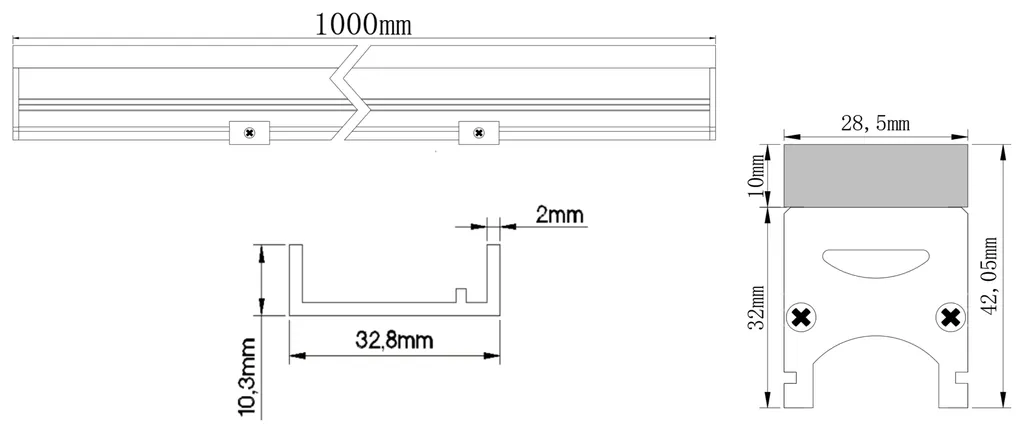

- 28.5 mm wide × 42.05 mm high section with a 10 mm diffuser
- 1000 mm length
- Mounting clip 32.8 mm wide, 10.3 mm high
- 12W at DC 24V
- 120° beam angle
- ON/OFF and DMX control
- White, RGB and RGBW options
Specifications
- Model
- Twilight 12W
- Wattage
- 12W
- Input Voltage
- DC 24V
- Beam Angle
- 120°
- Controls
- ON/OFF, DMX
- Colour Options
- 2700K, 3000K, 4000K, 5000K, 5700K, 6500K, RGB, RGBW
- Length
- 1000 mm
- Dimensions
- 28.5 mm wide × 42.05 mm high (10 mm diffuser, 32 mm body)
- Mounting Clip
- 32.8 mm wide × 10.3 mm high, 2 mm
- IP Rating
- IP 67 (badge)
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
