Urban Poles
Column Lights
Luméa
Illuminate with Intent
A 4 m extruded aluminium column with two round LED modules above a patterned illuminated section, rated 2 × 18W + 40W. It is supplied prewired as a plug & play pole.
- Wattage
- 2 × 18W + 40W
- CCT
- 2700K, 3000K
Features
- 2 × 18W + 40W LED module in 2700K or 3000K
- Prewired plug & play pole with connectors, cables and MCB
- Extruded aluminium pole with powder coating
- Welded with a special V-groove technique
- Large-area coverage from a specially designed optical system
- AL 6063 aluminium heat sink for thermal management
- 10 kV surge protection with over-voltage auto-restart
- LED module lifespan above 50,000 hours, LM80 tested
Specifications
- Wattage
- 2 × 18W + 40W
- CCT
- 2700K, 3000K
- Dimensions
- 150 mm × 4000 mm
- Pole
- Extruded aluminium, powder coated
- Welding
- V-groove technique
- Optics
- Large-area coverage optical system
- Heat Sink
- AL 6063 aluminium
- Surge Protection
- 10 kV
- Over-voltage Protection
- Auto-restart
- LED Lifespan
- > 50,000 hours (LM80 tested)
- Wiring
- Prewired with connectors, cables and MCB
Applications
- Parks
- Driveways
- Pathways
- Building surrounds
- Entrances
- Squares & Gardens
- Promenades
- Iconic Roads

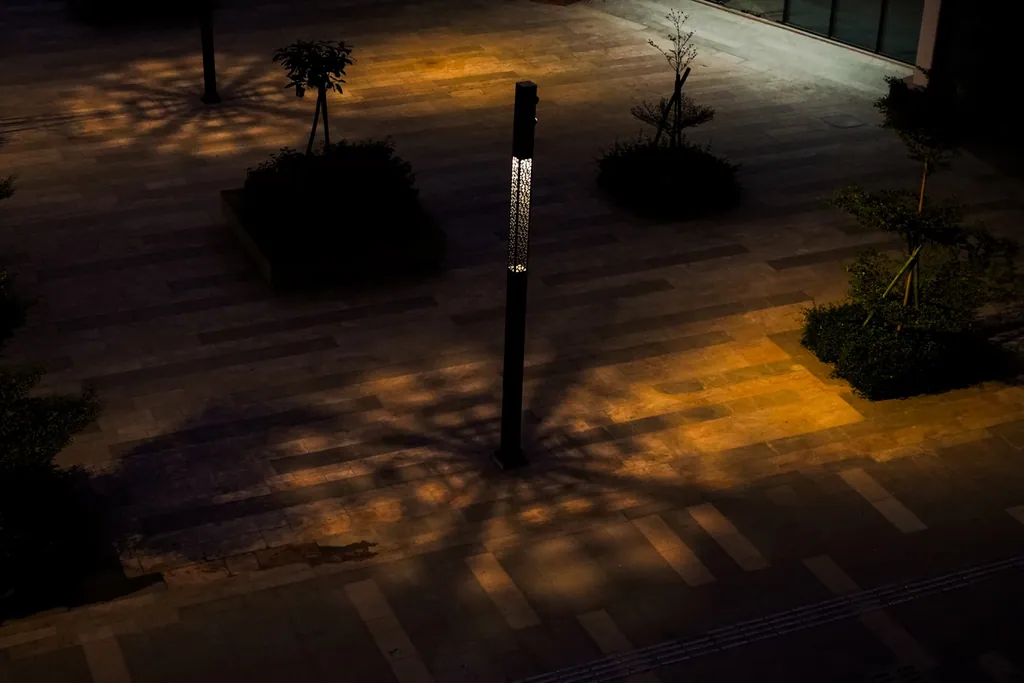

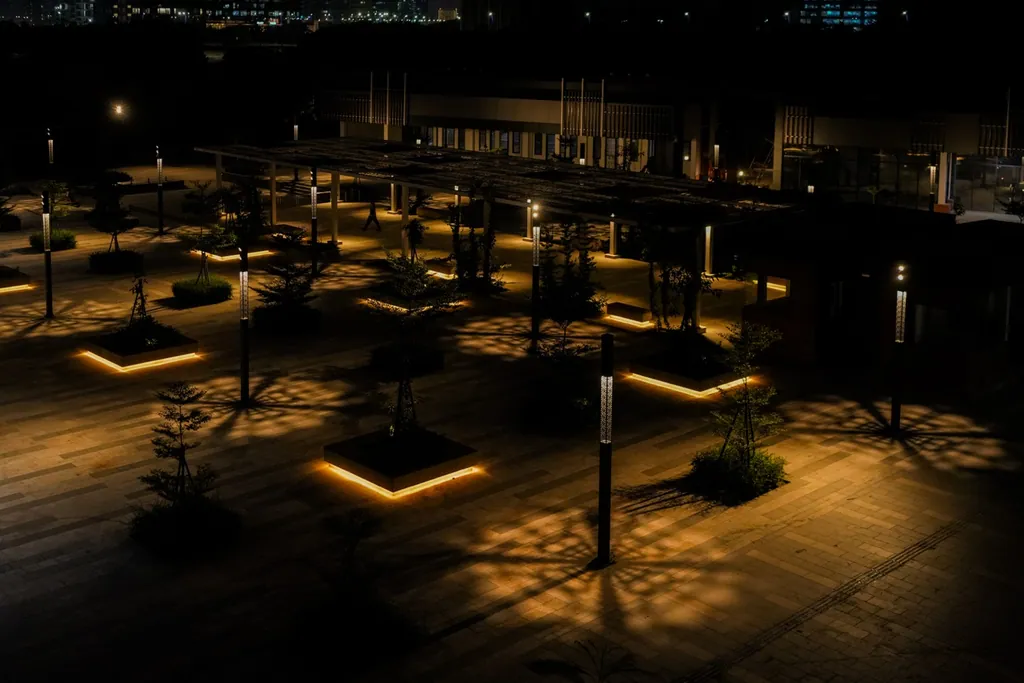

Installed at
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
