Models

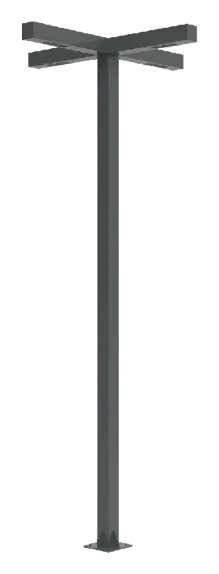

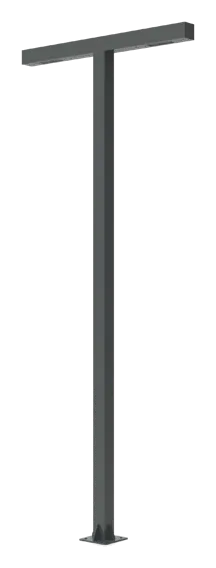

MTP-701 – MTP-708
Urban Plug & Play Poles
Prewired urban poles with an integrated IP 67 LED module, offered in eight arm configurations from MTP-701 to MTP-708. Sizes cover heights of 3 to 6 m in square and rectangular sections.
- Protection
- IP 67 (LED module)
- Efficacy
- > 160 lm/W*
- Height
- 3–6 m
Features
- Prewired plug & play poles with connectors, cables and MCB
- Mild steel, hot-dip galvanised with PU paint, or galvanised iron with powder coating
- Welded with a special V-groove technique
- Integrated high-power IP 67 LED module
- Luminaire system efficacy above 160 lm/W*
- Pole height to pole spacing ratio above 6*
- 10 kV surge protection with over-voltage auto-restart
- LED module lifespan above 50,000 hours, LM80 tested
Specifications
- Height
- 3–6 m
- Pole Sections
- Square 100 × 100 mm; Rectra (rectangular) 120 × 70 mm and 145 × 82 mm
- Pole Material
- Mild steel, hot-dip galvanised with PU paint, or galvanised iron with powder coating
- Welding
- V-groove technique
- IP Rating
- IP 67 (LED module)
- Optics
- Large-area coverage optical system
- Luminaire System Efficacy
- > 160 lm/W*
- Pole Height to Spacing Ratio
- > 6*
- Uniformity
- Uniformity ratio increased by 25%
- Heat Sink
- AL 6063 aluminium
- Surge Protection
- 10 kV
- Over-voltage Protection
- Auto-restart
- LED Lifespan
- > 50,000 hours (LM80 tested)
- Wiring
- Prewired with connectors, cables and MCB

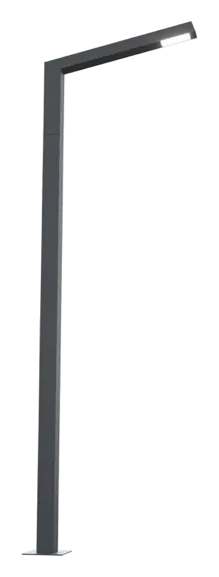

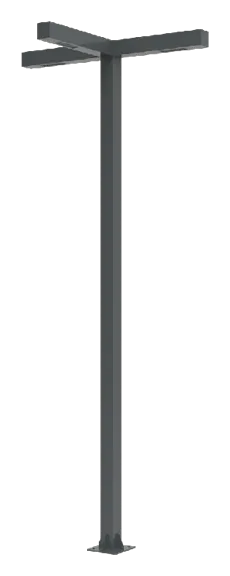

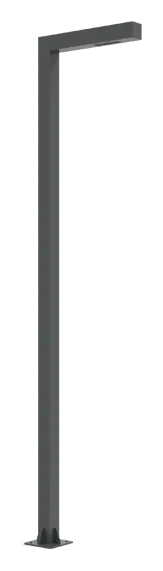

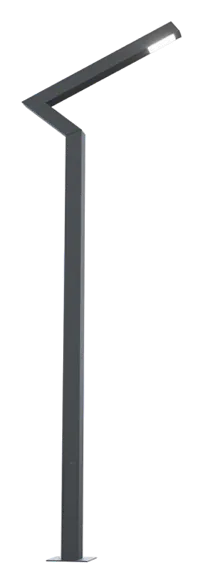

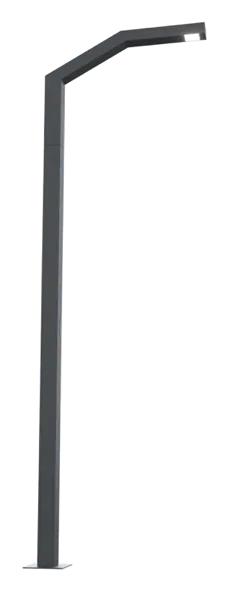

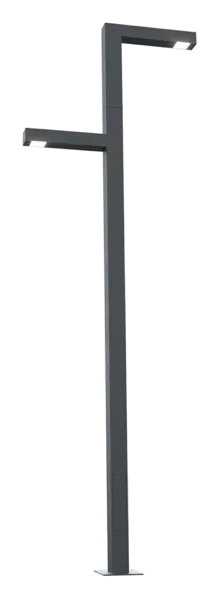

Models
8 modelsValues common to every model are listed under Specifications.

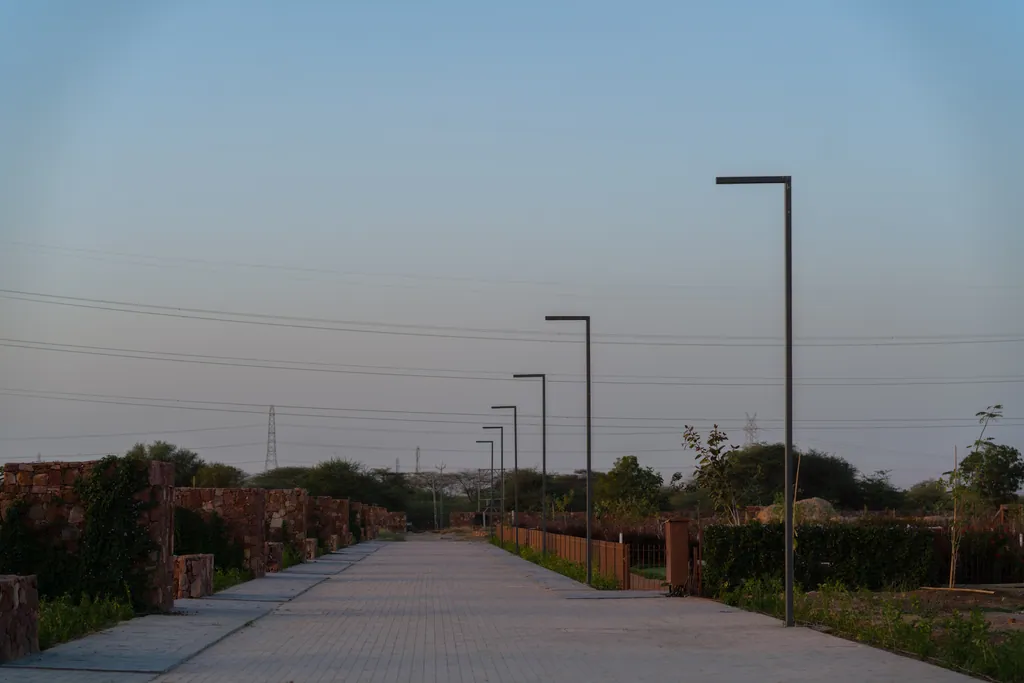

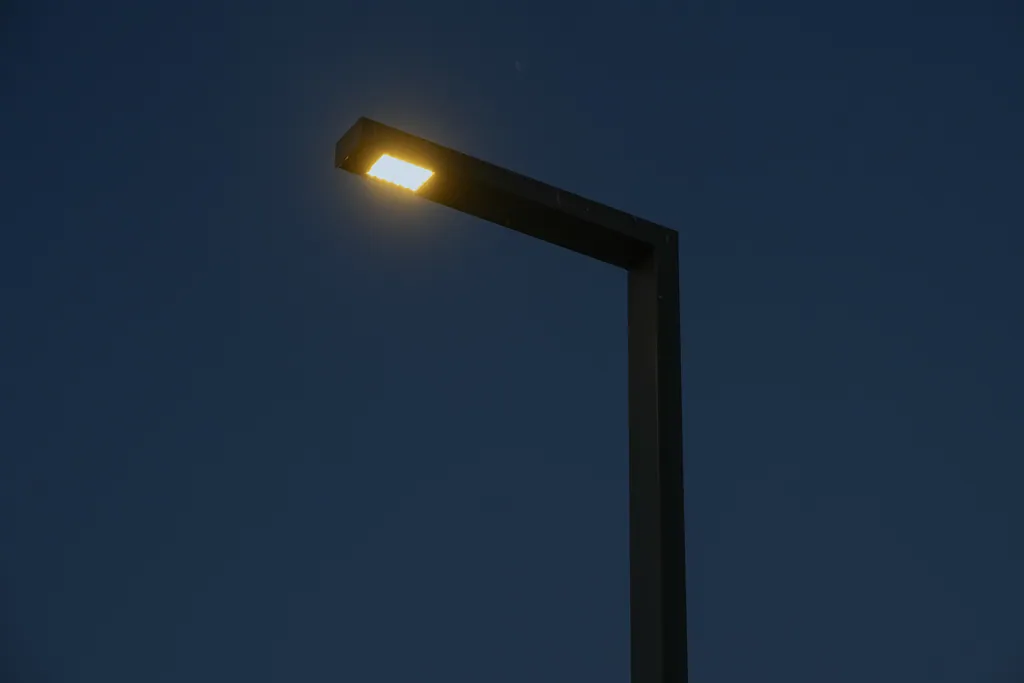

Installed at
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying.
* As published by ACON; ask us for the test conditions.
