Smart streetlighting.
ACON smart LED street lights can be monitored, metered, controlled and dimmed from anywhere, wirelessly — one light at a time, or a whole city at once.
BRTS corridor, Ahmedabad
In 2014 we commissioned India’s first smart street-lighting project, across the whole of GIFT City. Today we are helping turn Ahmedabad’s 37,500 street lights into one smart city platform — on a luminaire awarded the India Design Mark.
- Smart City Ahmedabad
- 37,500street lights that ACON is helping turn into one smart city platform
- S.P. Ring Road, Ahmedabad
- 76 kmof ring road lit for the Ahmedabad Urban Development Authority

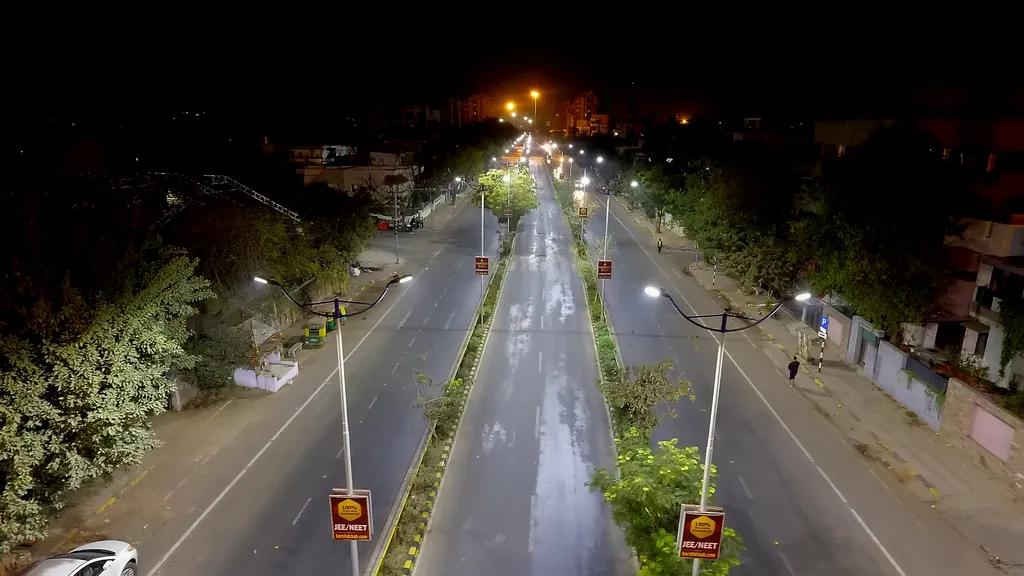

- BRTS corridor, Ahmedabad
- 72 kmon smart LED street lights, saving more than 75% energy
Published performance
As ACON publishes them for its smart street lighting.
- Average lux
- >35
- Uniformity
- >0.8
- Operational lifespan
- 50,000h

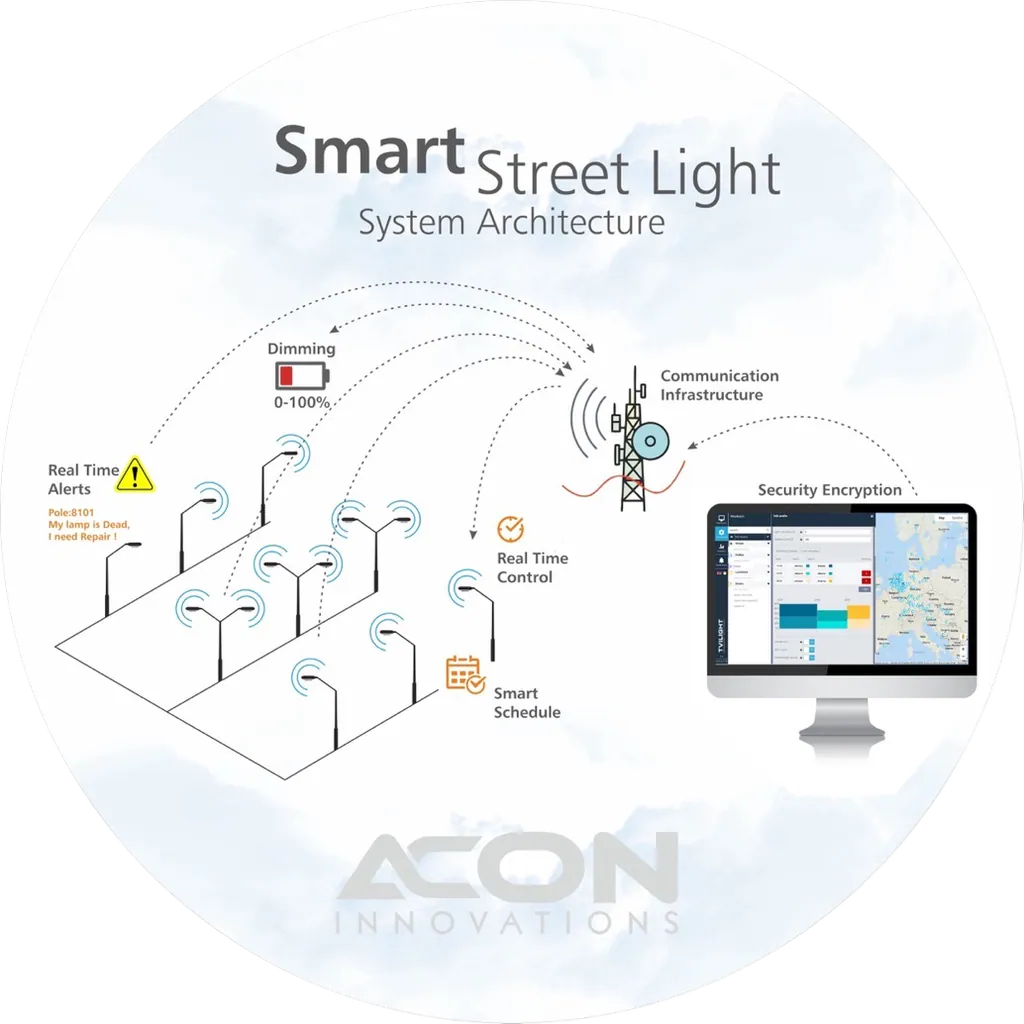

From the poleto the control room.
6 steps, from the pole to the screen
Step 01 / 06
The luminaire
Each street light has a universal NEMA receptacle, so a sensor or controller plugs straight in. Every pole has its own number on the network.
The lighton the pole.
Smart Street Lights
India Design Mark
National Award Winning Design
Street Lighting

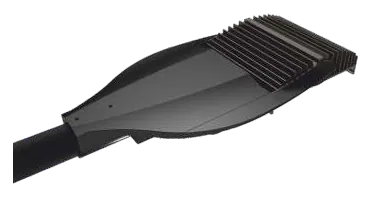

Smart Street Light
- System Efficacy
- > 180 lm/W*
- Sensor Interface
- Universal NEMA receptacle, plug & play
- LED Angle
- Tiltable
- Optics
- Modular UV-protected optics with advanced cut-off
- IP Rating (Optics)
- IP 67
- Surge Protection
- > 10 kV
- Over-voltage Protection
- Auto-restart
- Lifespan
- 50,000 hours
Specifications from ACON catalogues and datasheets. Subject to change — confirm with ACON before specifying. *As published by ACON, without test conditions.
What each lightbrings to the street.
AControl
- Wireless controlMonitored, metered, controlled and dimmed wirelessly, from anywhere.
- Group controlAddress one light, or a whole group of lights at once.
- Universal NEMA receptaclePlug-and-play sensor installation on the luminaire.
- Auto-restartOver-voltage protection that restarts the light by itself.
BLight
- Modular UV-protected opticsACON’s own optics raise luminaire efficiency by 20%.
- Uniformity ratio up 25%An evenly lit road, with no dark patches.
- Zero light pollutionAn advanced cut-off system stops light going skyward.
- Tiltable LED angleThe LED angle can be tilted to suit the road.
CEndurance
- Over 180 lm/W* system efficacyMinimum energy for the most light, used where it is needed.

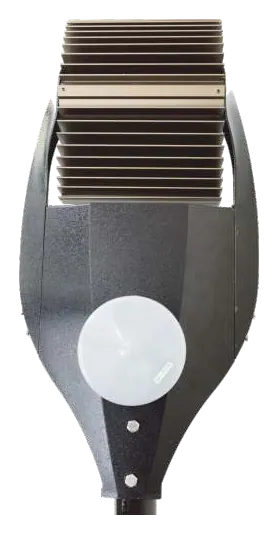

- Thermal managementRear heat-sink fins carry heat away from the LEDs.
- Surge protection above 10 kVProtection for the luminaire against voltage surges.
- 50,000 hoursOperational lifespan of the luminaire.
*As published by ACON, without test conditions. Confirm before specifying.
The whole city,light by light.
Individual light management and control help a city improve energy efficiency, increase public and traffic safety, reduce CO2 emissions and lower operation and maintenance costs.
- Monitor and control public lighting across the city
- Energy savings of up to 80%, with accurate power metering
- Automatic on and off, set by the ambient light
- Instant fault alerts, with precise geo-coordinates
- Up to 50% lower operation and maintenance costs
- Cloud-based software, easy to reach and log in to
- A foundation for smart city and IoT applications
Installedacross India.
From an international airport to a toll road — the places ACON lists for its smart street lights.
- 01Bangalore International Airport
- 02GIFT CityIndia’s first, 2014
- 03GandhinagarMotion-based controls
- 04VizagOn smart poles
- 05KakinadaMotion-based controls
- 06NagpurMotion-based controls
- 07Faridabad
- 08VadodaraOn smart poles
- 09AhmedabadSmart city platform · BRTS corridor
- 10GIFT SEZ
- 11RaipurOn smart poles
- 12Jaipur
- 13Barefoot on the HillsKozhikode · High-end villas
- 14Delhi-Agra Toll Road

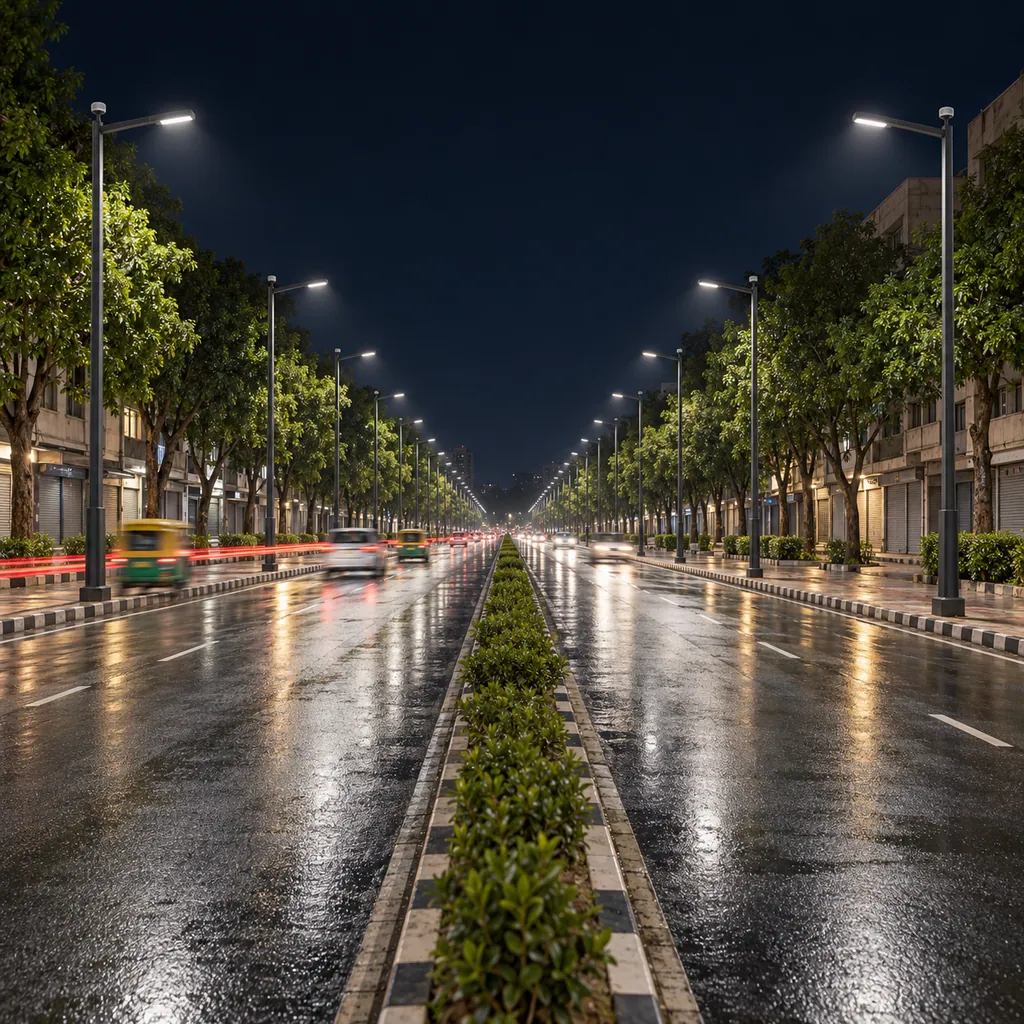

Smart lighting,on the ground.
Smart street lighting,on film.
Brochure · 2023 · PDF · 4 pages · 1.4 MB
