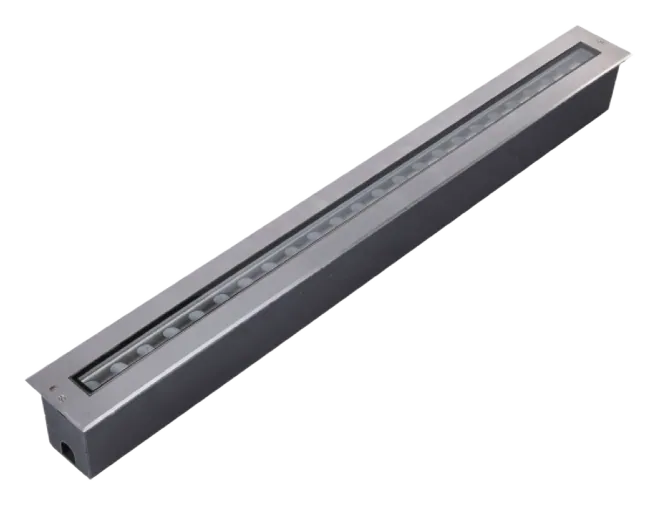

AI-IGLL linear in-ground luminaire with metal trim and recessed lens row

01 / 03

AI-IGLL linear in-ground luminaire with metal trim and recessed lens row

AI-IGLL · 01 / 03

AI-IGLL linear in-ground luminaire with metal trim and recessed lens row

AI-IGLL

AI-IGLL-300 – AI-IGLL-1000Façade Lighting / In-Ground / Burial Lights

Linear in-ground luminaire in three sizes from 9W to 24W, with a 90 mm wide trim and an overall depth of 83 mm.

Wattage
9W · 12W · 24W
Protection
IP 67

  • Three sizes: 9W, 12W and 24W
  • 90 mm wide trim over a 55 mm body, 83 mm deep
  • 24V operation
  • IK 10 impact rating
  • IP 67
  • White, single-colour, RGB, RGBA and RGBW options

Input Voltage
24V
IK Rating
IK 10
IP Rating
IP 67
Dimensions
90 mm wide trim; 55 mm wide body; 83 mm deep
Colour Options
2700K, 3000K, 4000K, 5700K, 6500K, Red, Green, Blue, RGB, RGBA, RGBW (4000K), RGBW (5700K)
LED Chip
CREE / OSRAM
Light Efficiency
75 lm/W at 3000K; 35 lm/W at RGBW
Beam Angle
6° / 8° / 15° / 30° / 36° / 45° / 60°
Controls
ON/OFF, DALI, 0-10V, PWM, DTW, DMX/RDM

AI-IGLL: models and the values that differ between them
ModelWattage
AI-IGLL-3009W
AI-IGLL-50012W
AI-IGLL-100024W

Specifications may change. Please confirm with ACON before specifying.
