AI-RD09 round in-ground luminaire with metal trim and multi-LED lens

01 / 04

AI-RD09 round in-ground luminaire with metal trim and multi-LED lens

AI-RD07 / 09 / 12 / 18 · 01 / 04

AI-RD09 round in-ground luminaire with metal trim and multi-LED lens

AI-RD07 / 09 / 12 / 18

AI-RD07 – AI-RD18Façade Lighting / In-Ground / Burial Lights

Round in-ground luminaires from 7W to 18W, 120 mm to 200 mm across.

Wattage
7W – 18W
Protection
IP 67
CCT
2700K / 3000K / 4000K

  • Four sizes: 7W, 9W, 12W and 18W
  • Trim diameters from 120 mm to 200 mm
  • 24V or 230V input
  • 2700K, 3000K or 4000K
  • IK 10 impact rating
  • IP 67

Input Voltage
24V / 230V
IK Rating
IK 10
IP Rating
IP 67
CCT
2700K / 3000K / 4000K

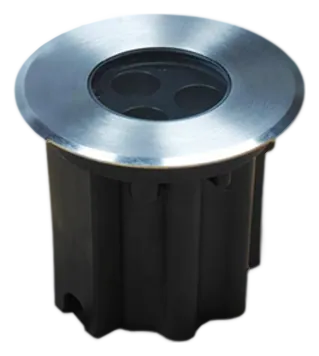

  • Model AI-RD07

    Wattage
    7W
    Dimensions
    Ø120 mm trim; Ø100 mm body; 110 mm deep
  • Model AI-RD09

    Wattage
    9W
    Dimensions
    Ø160 mm trim; Ø140 mm body; 110 mm deep

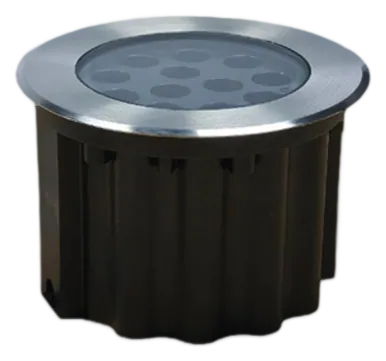

  • Model AI-RD12

    Wattage
    12W
    Dimensions
    Ø180 mm trim; Ø160 mm body; 120 mm deep

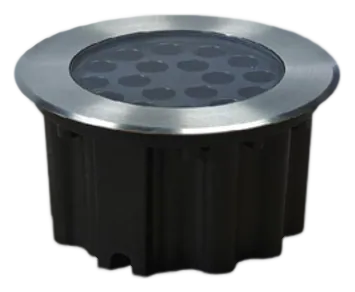

  • Model AI-RD18

    Wattage
    18W
    Dimensions
    Ø200 mm trim; Ø180 mm body; 120 mm deep

Specifications may change. Please confirm with ACON before specifying.
